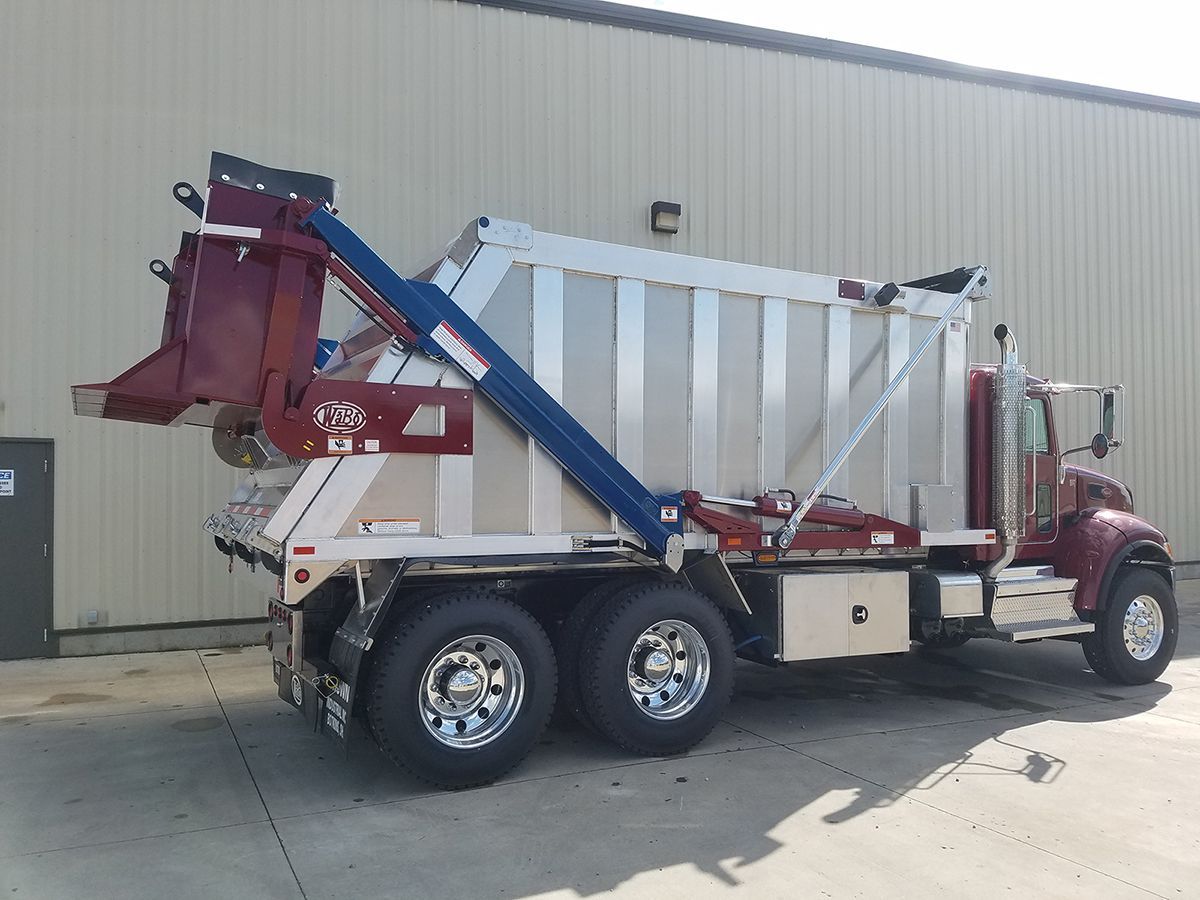

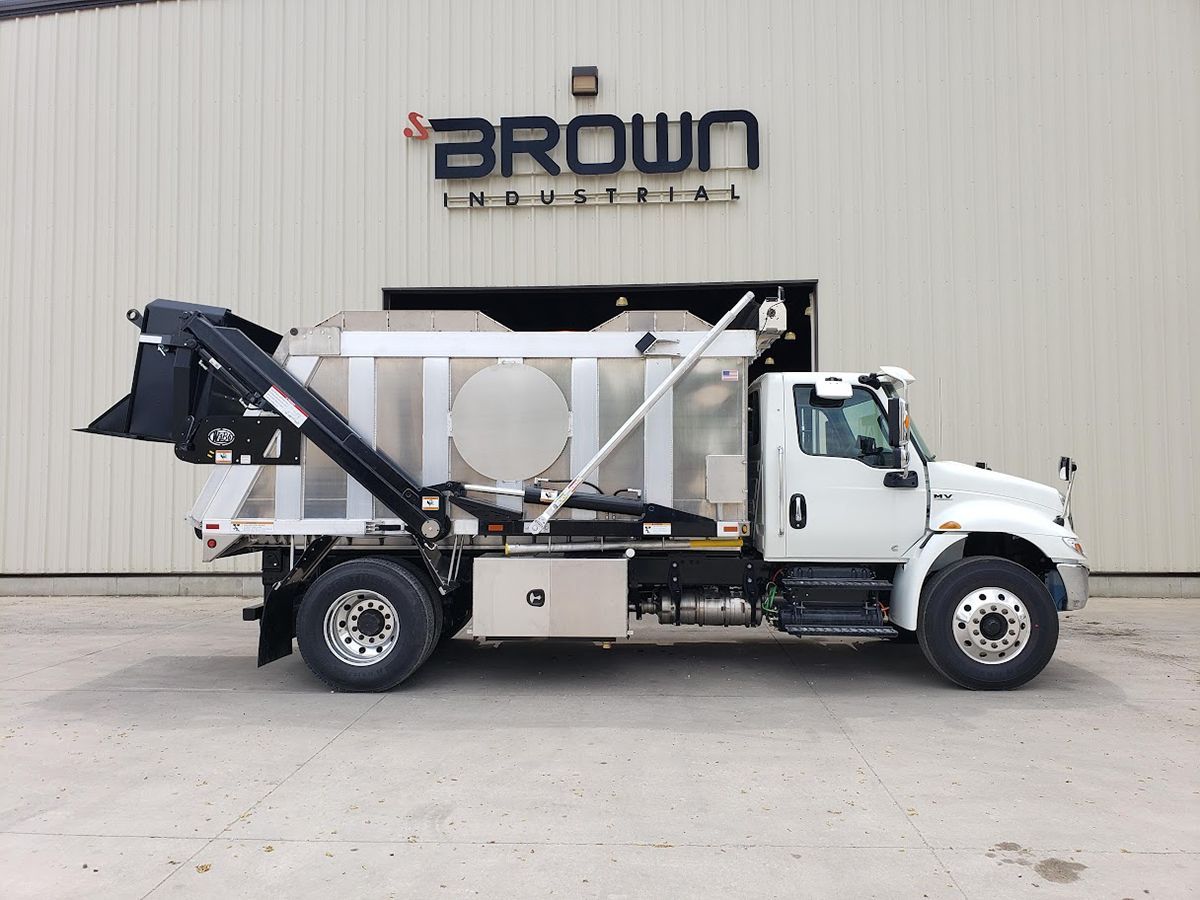

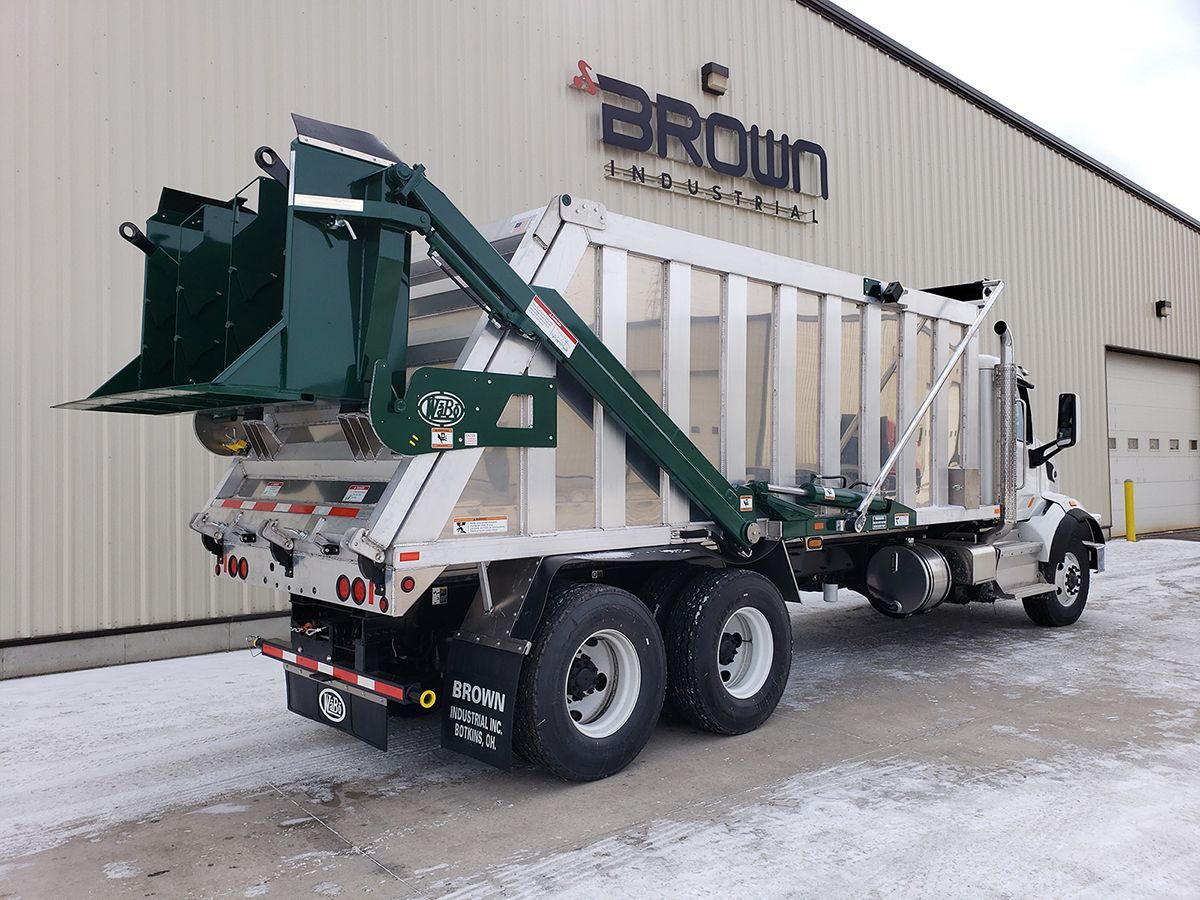

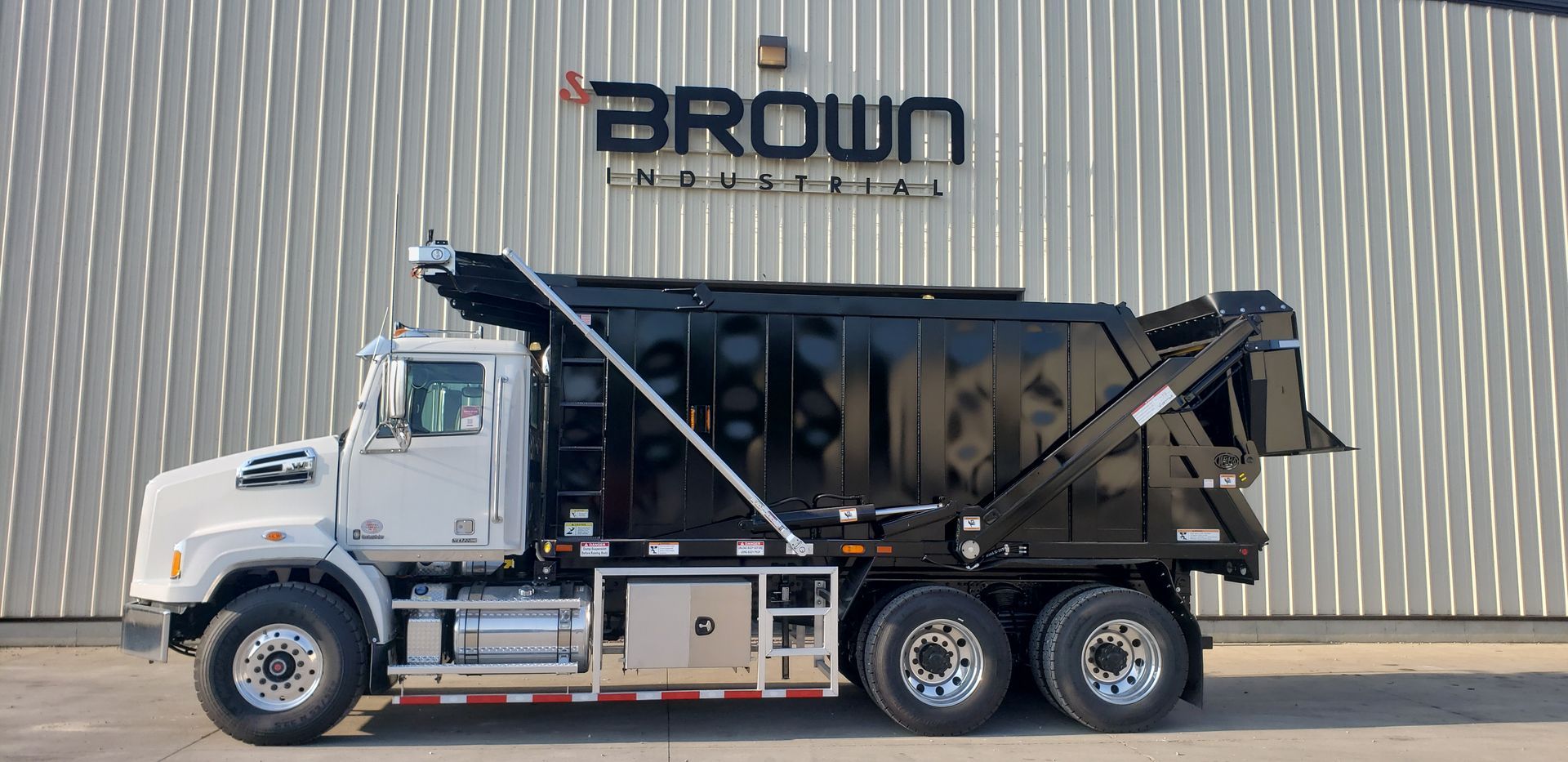

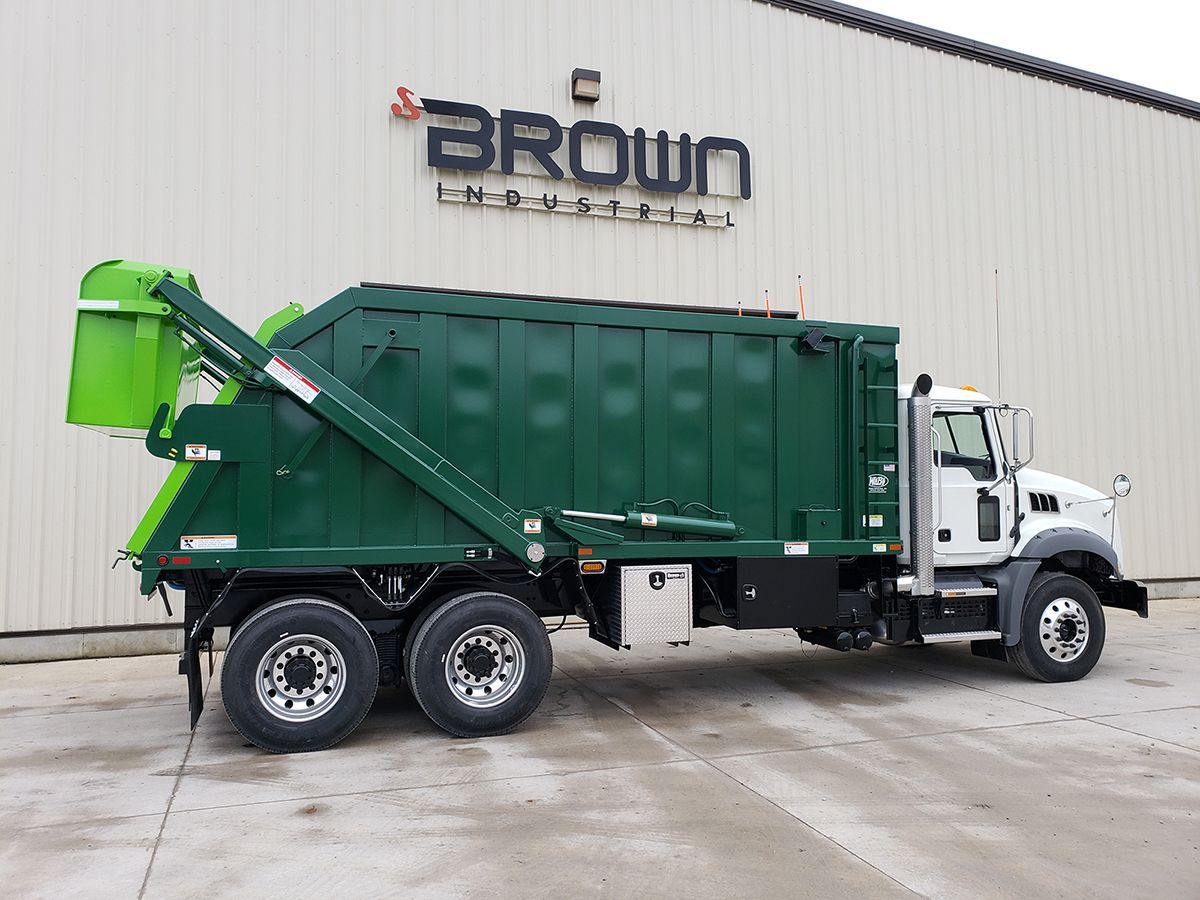

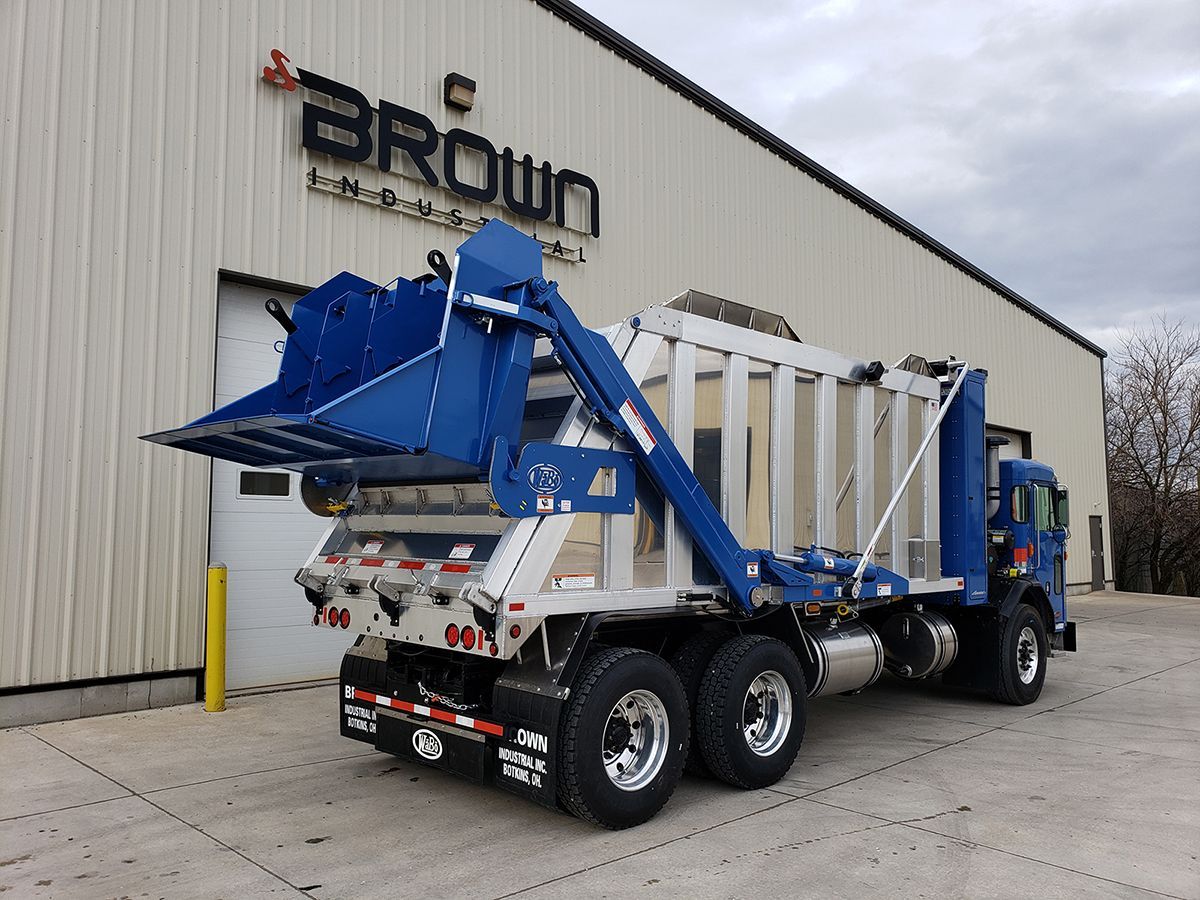

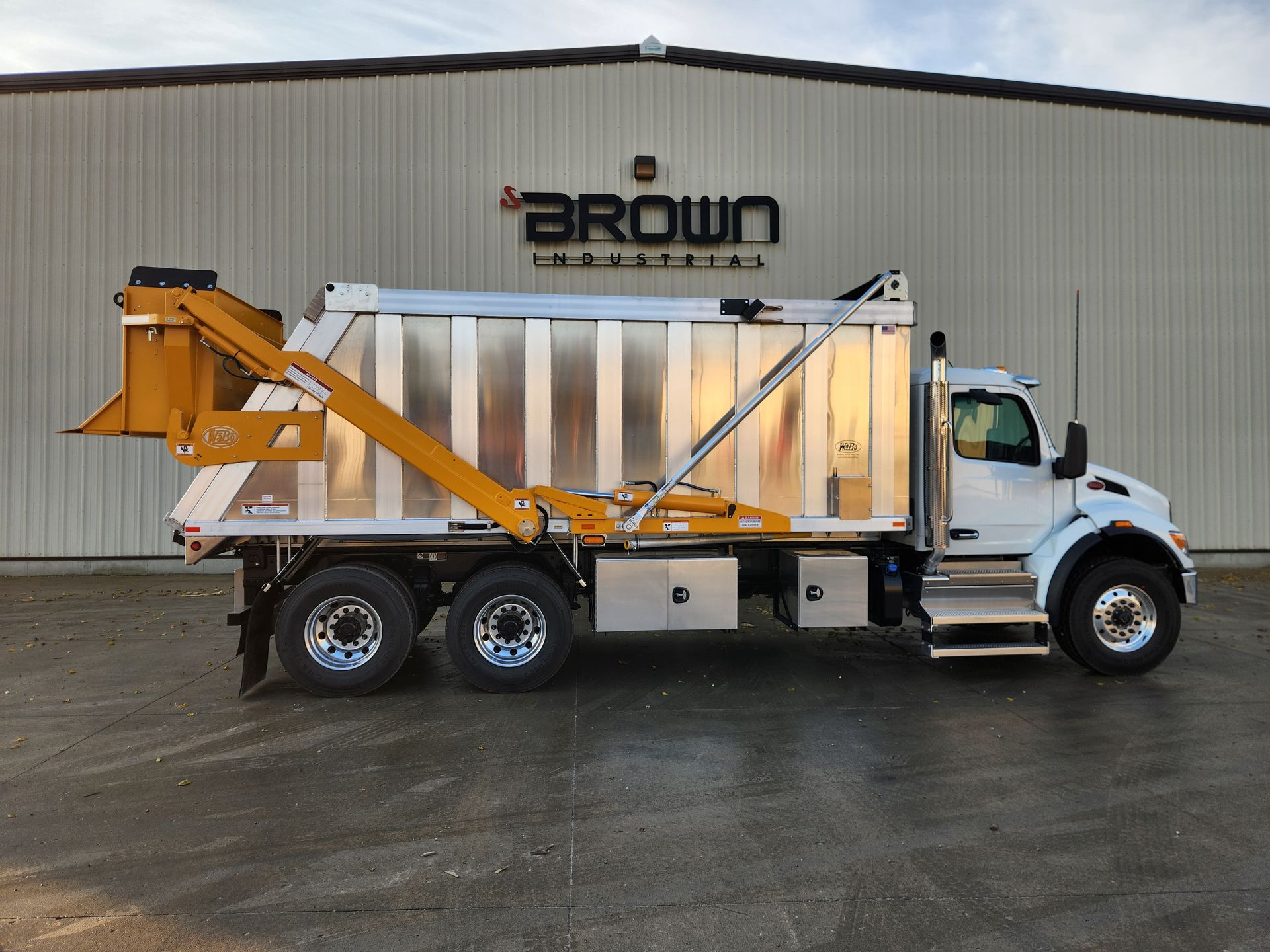

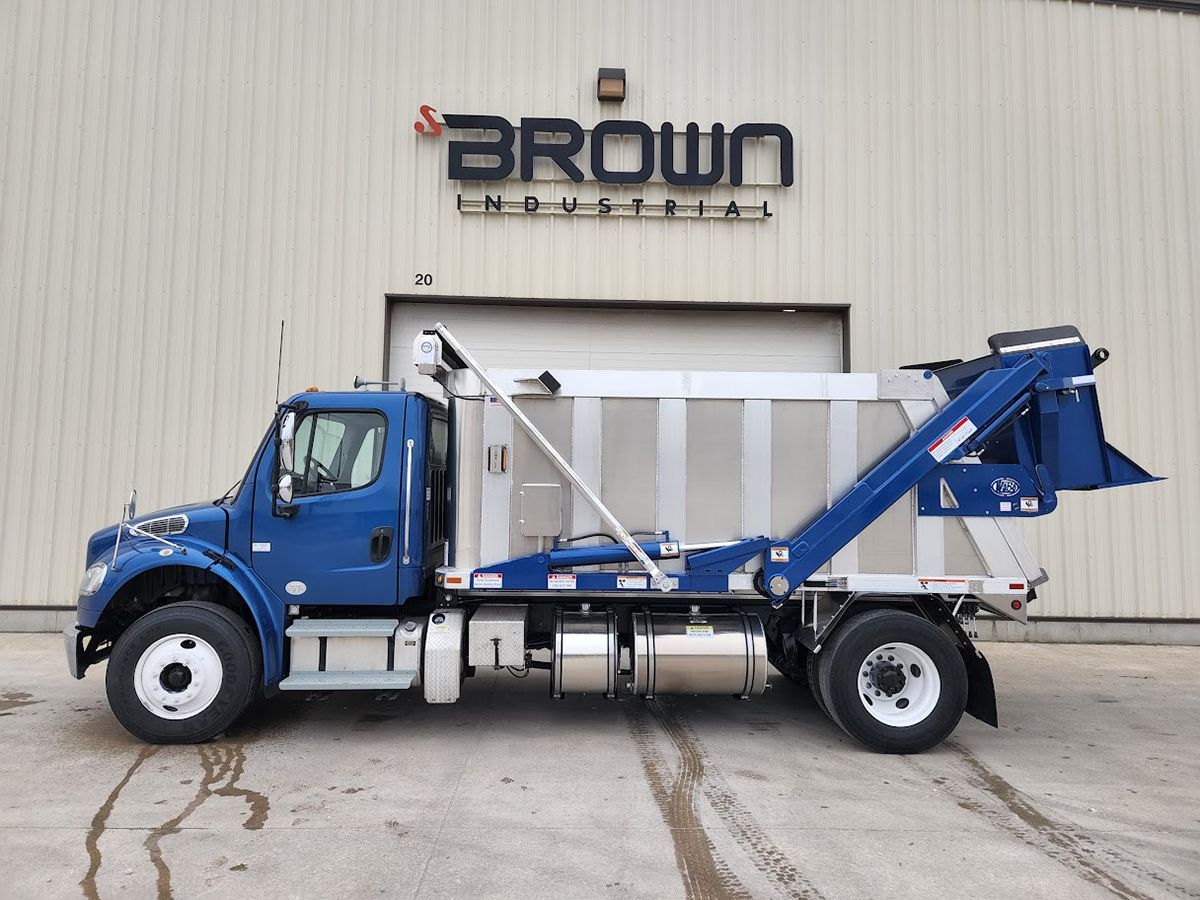

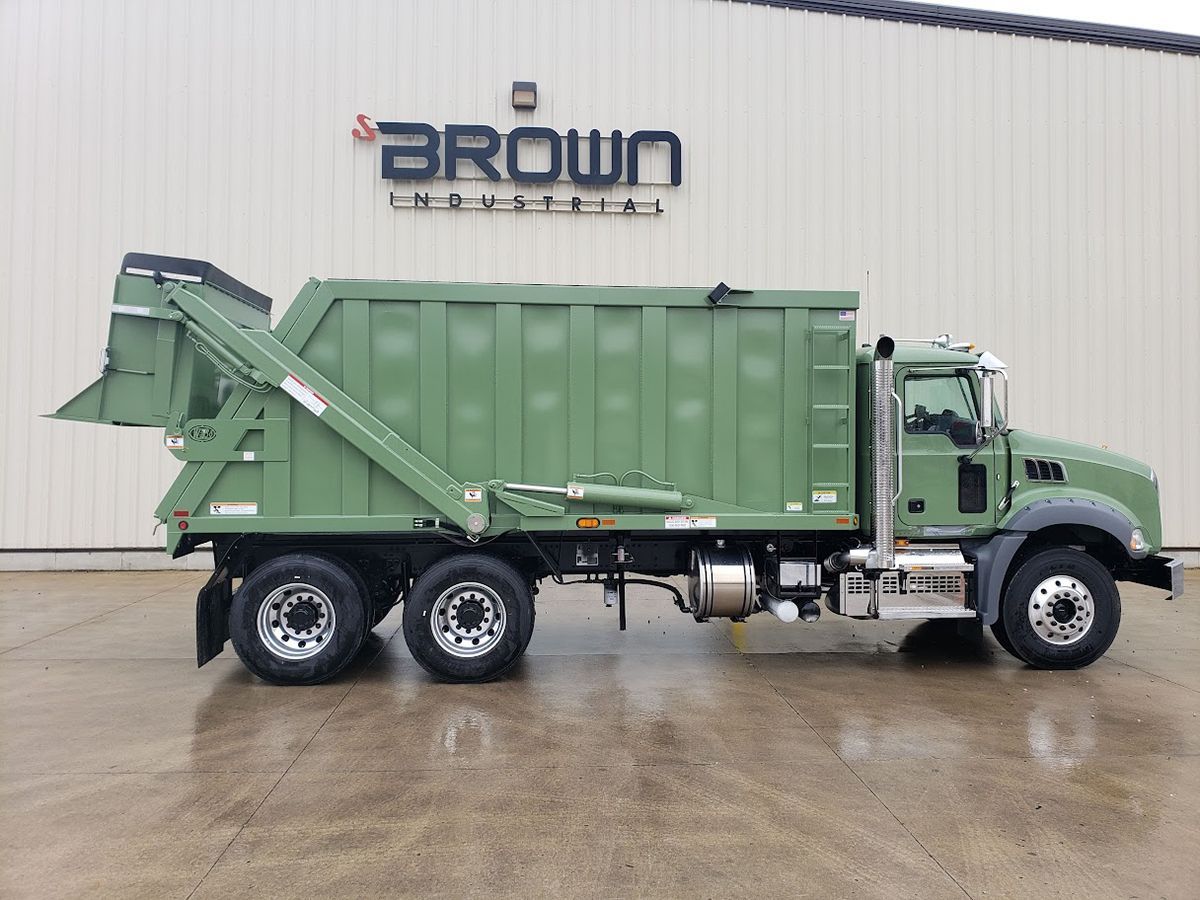

Bucket Bodies & Trailers

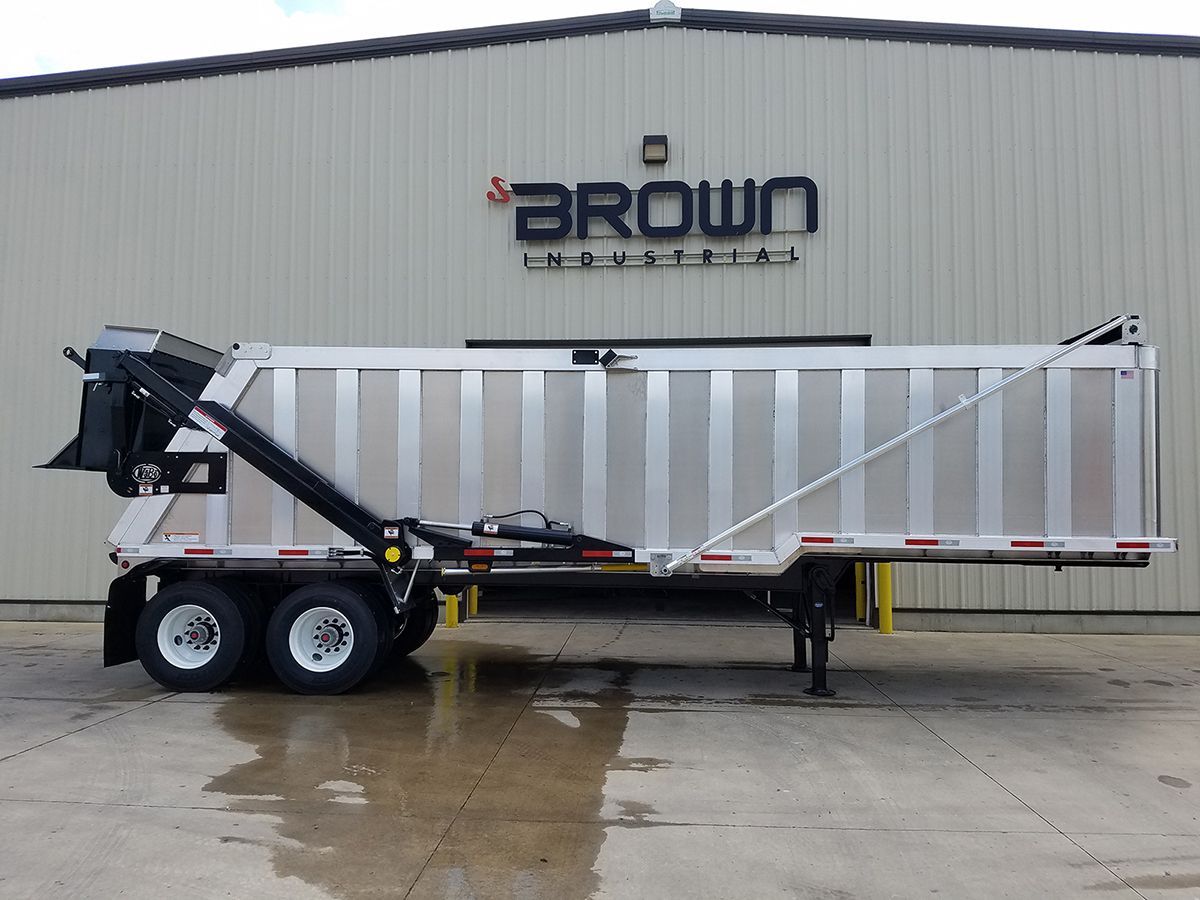

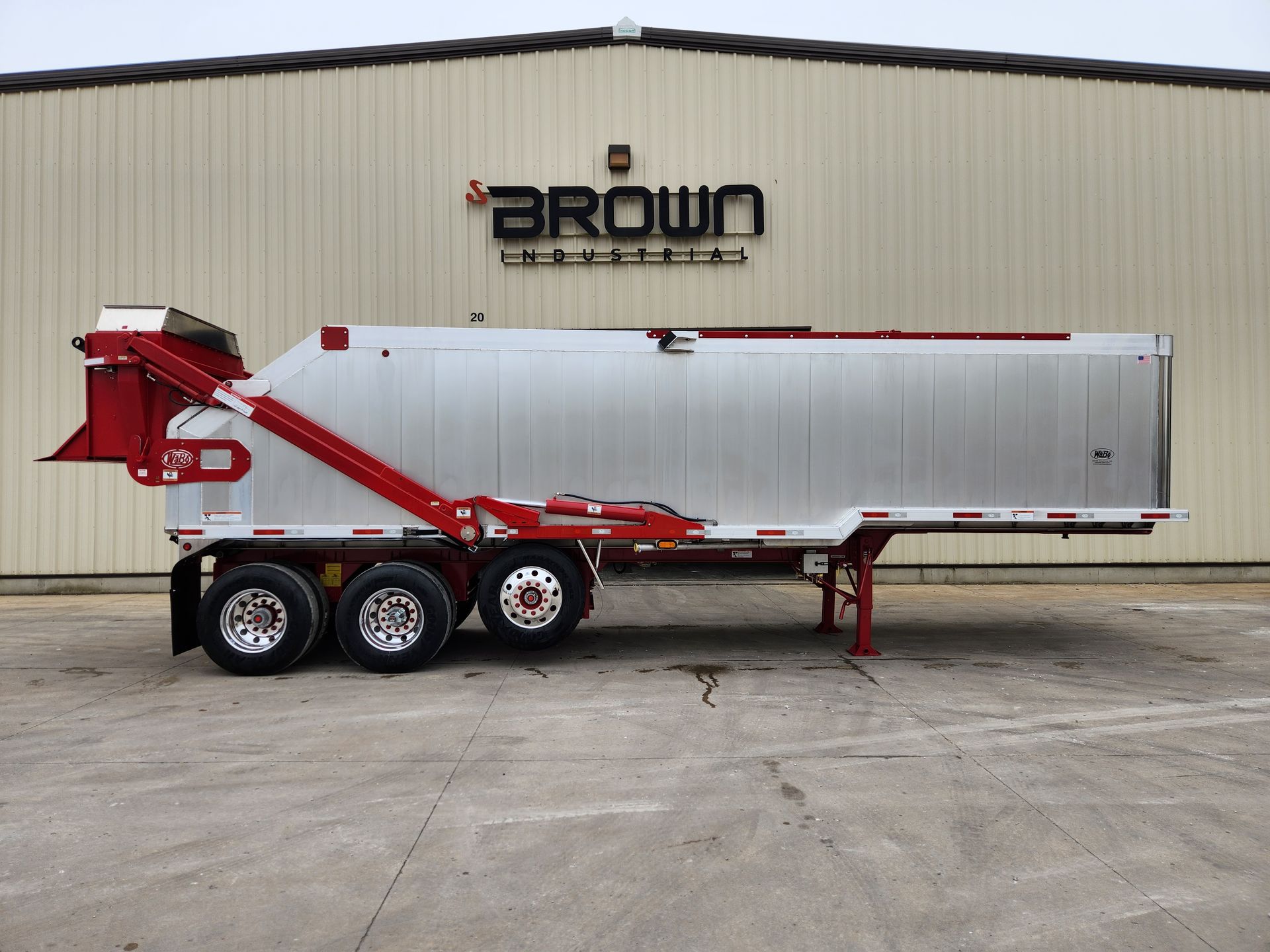

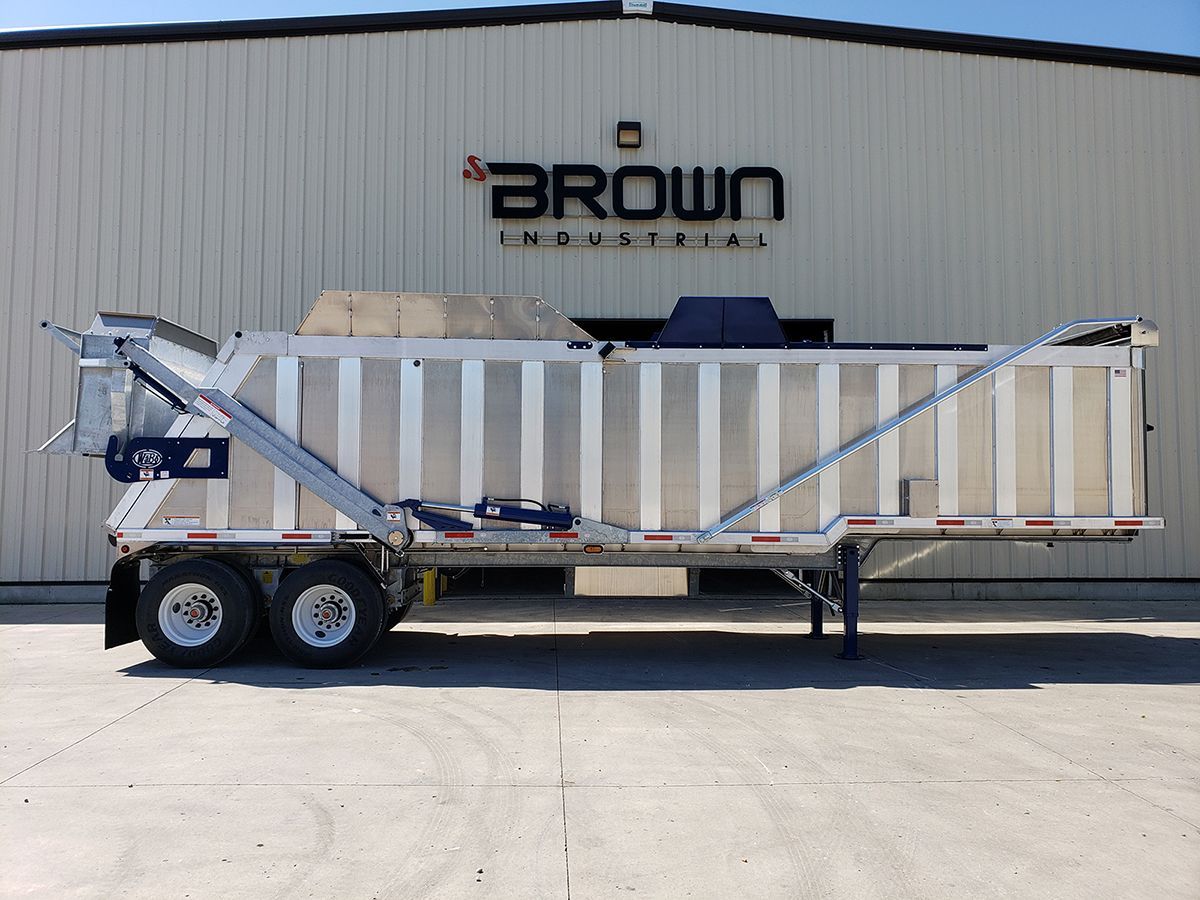

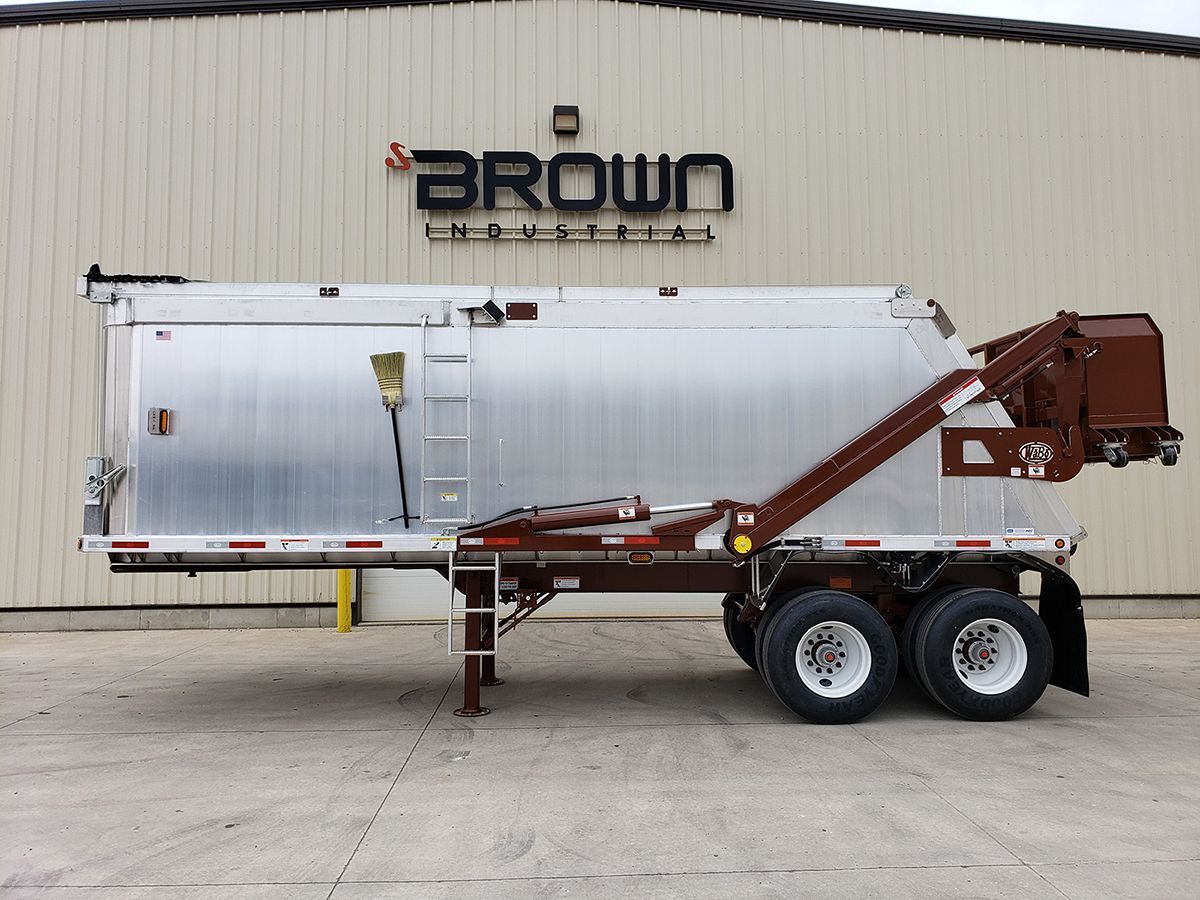

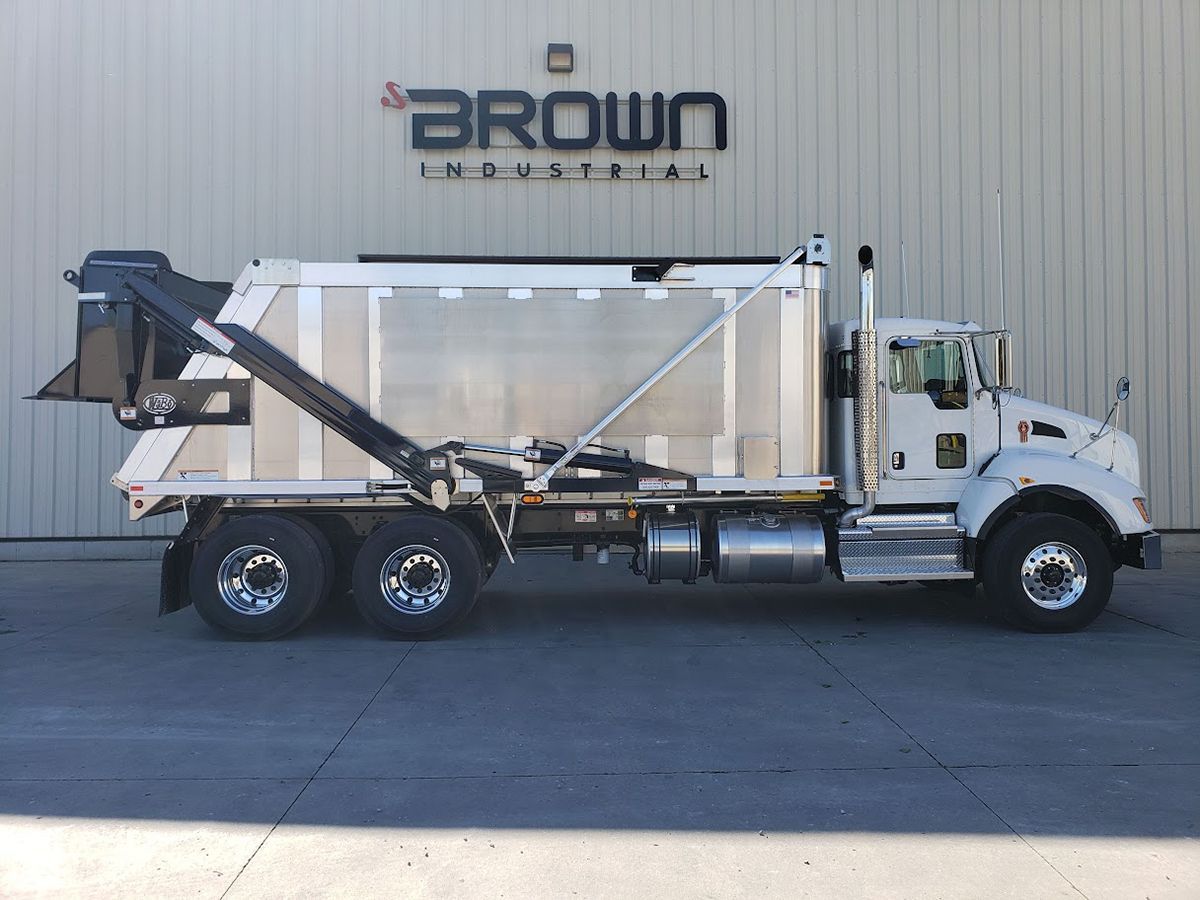

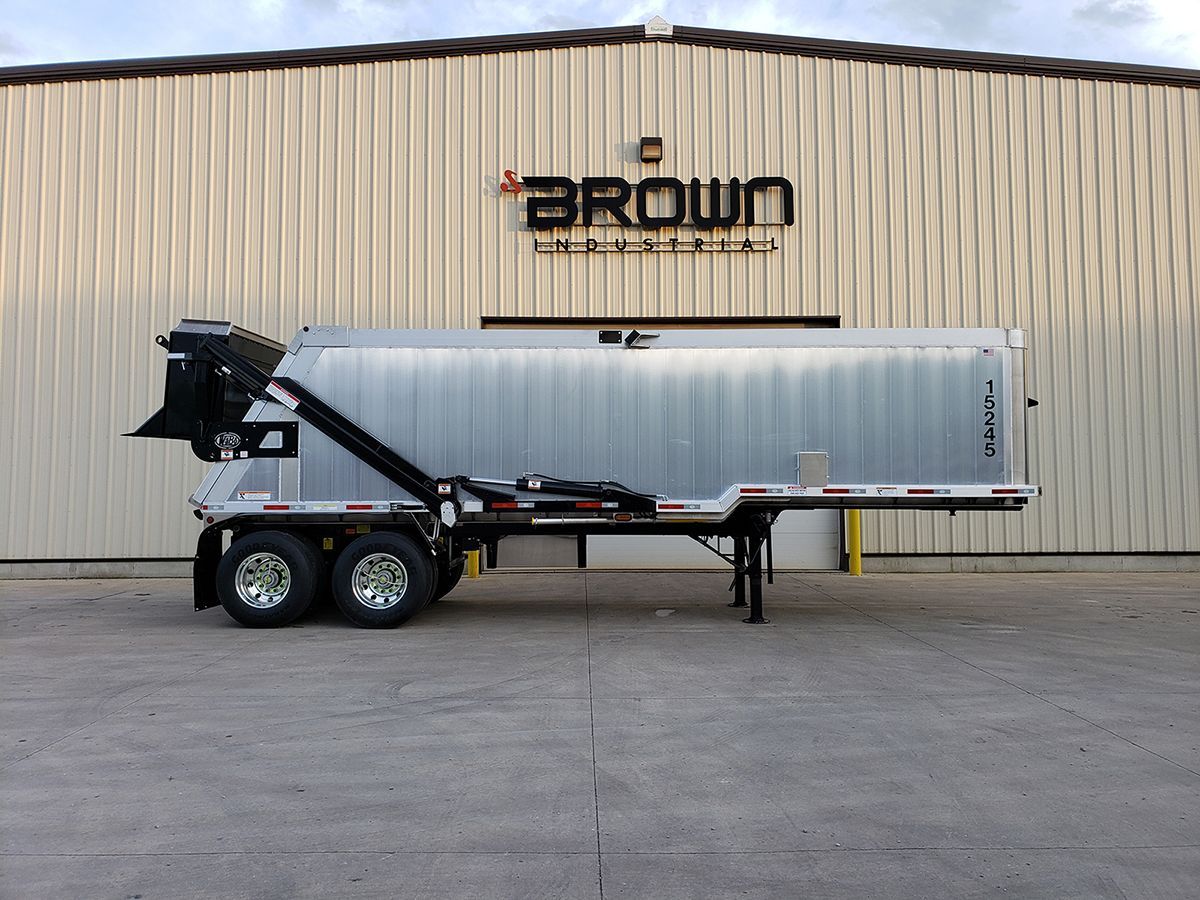

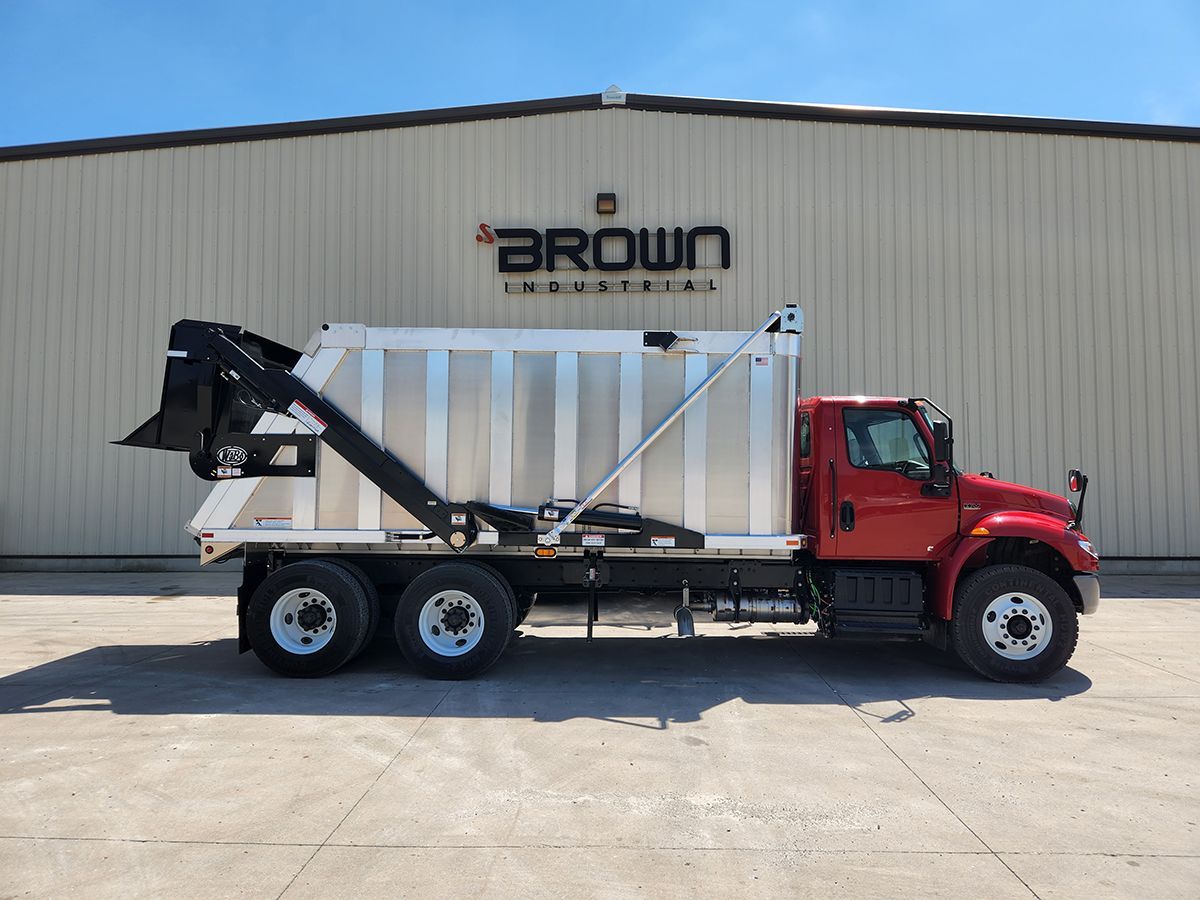

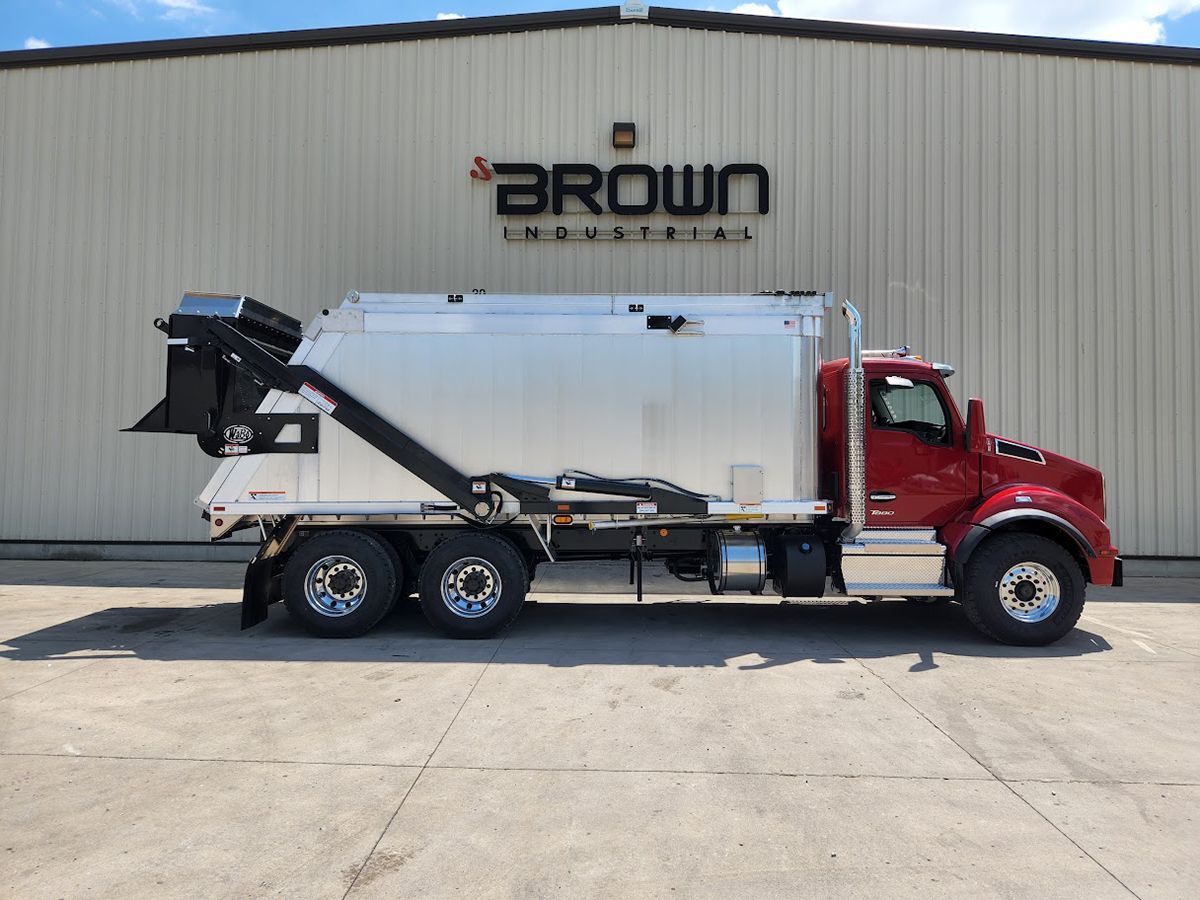

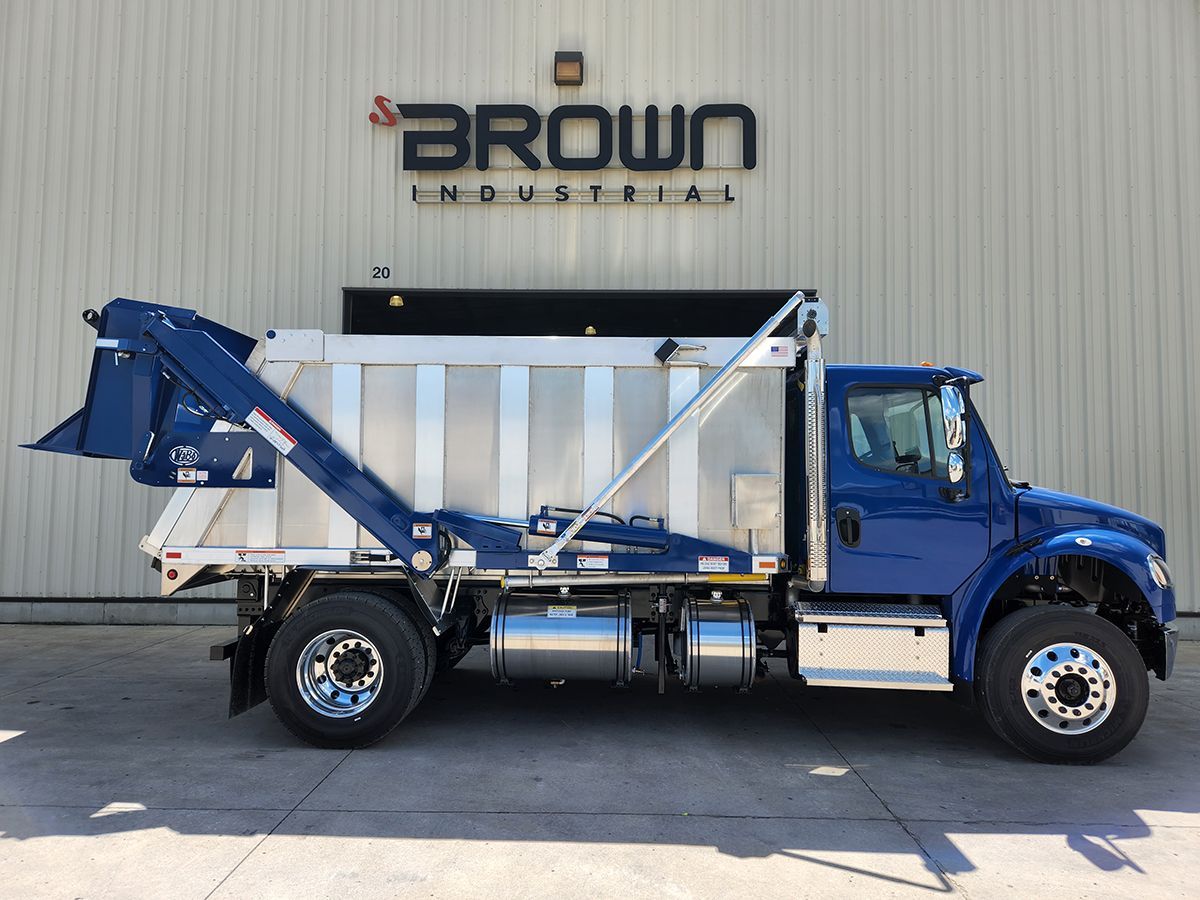

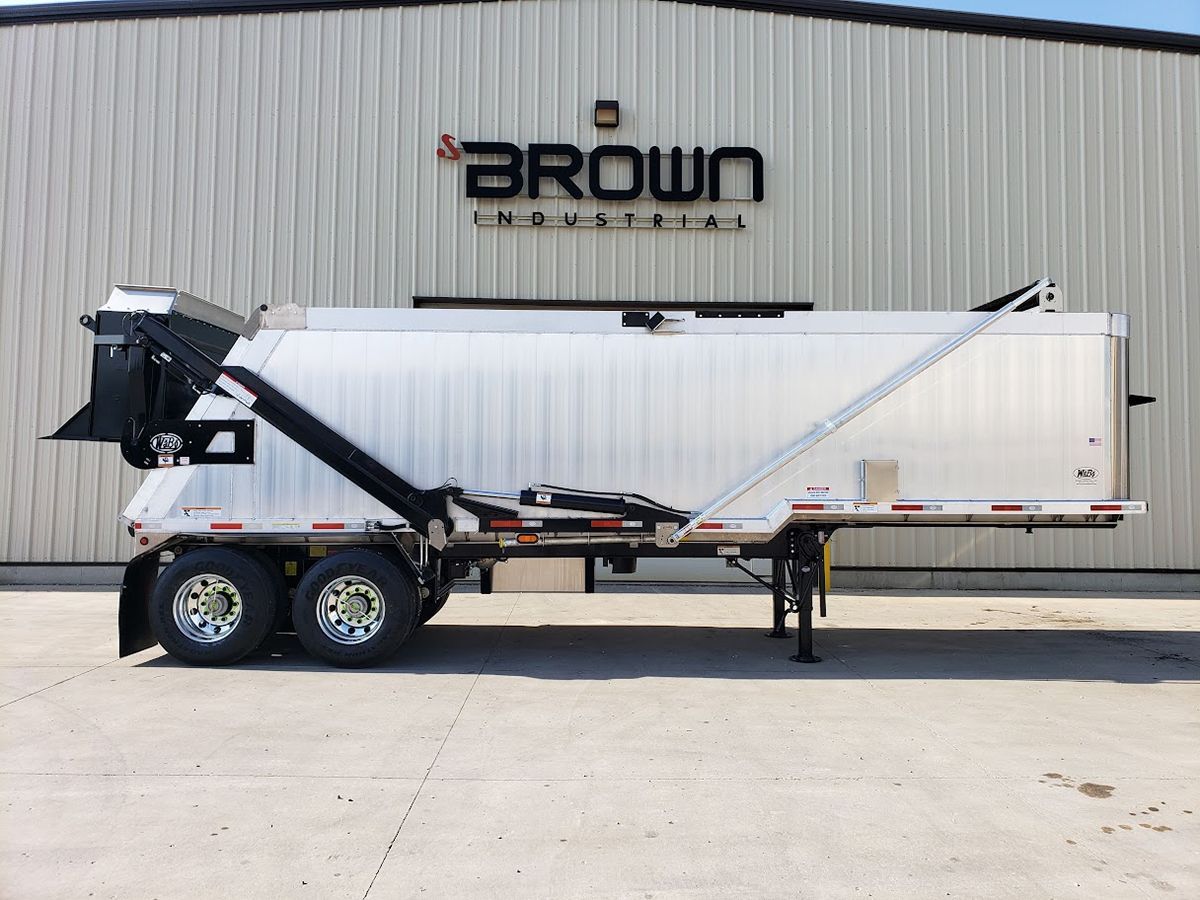

Aluminum Unit Standard Features:

• Sheet on post smooth inside walls
• 4” U-shaped cross-members on 12” centers
• 6” extruded aluminum I-beam long-sills with rubber cushion on bodies
• 6” extruded full length, z-rail on trailers
• Inside cleaner plates for structural rigidity and ease of clean out
• Greater bucket tilt angle allows dumping at extreme rear of body
• WaBo®designed cylinder guides to allow more leverage and industry leading forward dump position
• Seamless hydraulic tubing with flared ends
• Full height sealed tailgate
• 3” replaceable bronze arm shaft bushings
• 2” greasable bronze bucket bushings
• Bolt-on taper lock and keyed arms
• 409 stainless steel arm anchors
• Flat deck trailer frame

Aluminum Unit Available Options:

• Back up camera
• Bucket designed for your specific application
• Radio control hydraulic valves
• Load divider gate
• Winch system
• Hide basket
• Tarp systems
• 3/8” floor
• WaBo® barrel washer
• Lightweight, corrugated sides
• Tire inflation systems
• Step deck trailer frame
• Vulcan weighing system
• Custom options to meet your needs

409 Stainless Steel Unit Standard Features:

• 409 stainless steel floor, walls, and ends
• Strong, lightweight, corrugated sides
• 45° floor corners, for structural rigidity and ease of clean out
• WaBo®designed cylinder guides to allow more leverage and industry leading forward dump position
• Greater bucket tilt angle allows dumping at extreme rear of body
• Rugged stepped trailer frames to maintain a low center of gravity
• All critical components welded with pulse wire technology for a long, low maintenance life
• Full height sealed tailgate
• 3” replaceable bronze arm shaft bushings
• 2” greasable bronze bucket bushings
• Bolt-on taper lock and keyed arms
• Urethane paint
• Seamless hydraulic tubing with flared ends
• Black epoxy frame paint

409 Stainless Steel Available Options:

• 409 stainless steel cross-members and long-sills
• Smooth inside walls
• Back up camera
• WaBo® barrel washer
• Bucket designed for custom application
• Tarp systems
• Hide baskets
• Winch system
• Radio control hydraulic valves
• Load divider gate
• Tire inflation systems
• Vulcan weighing system

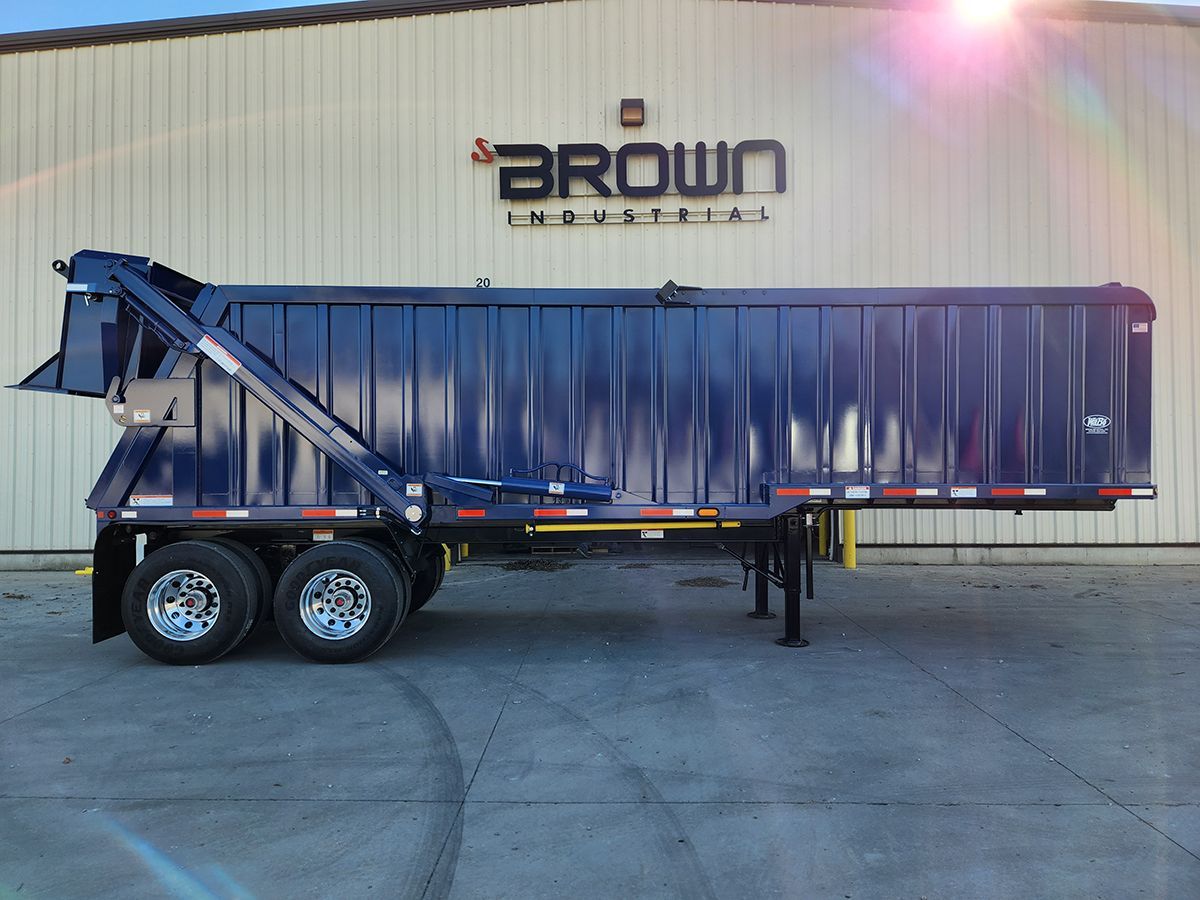

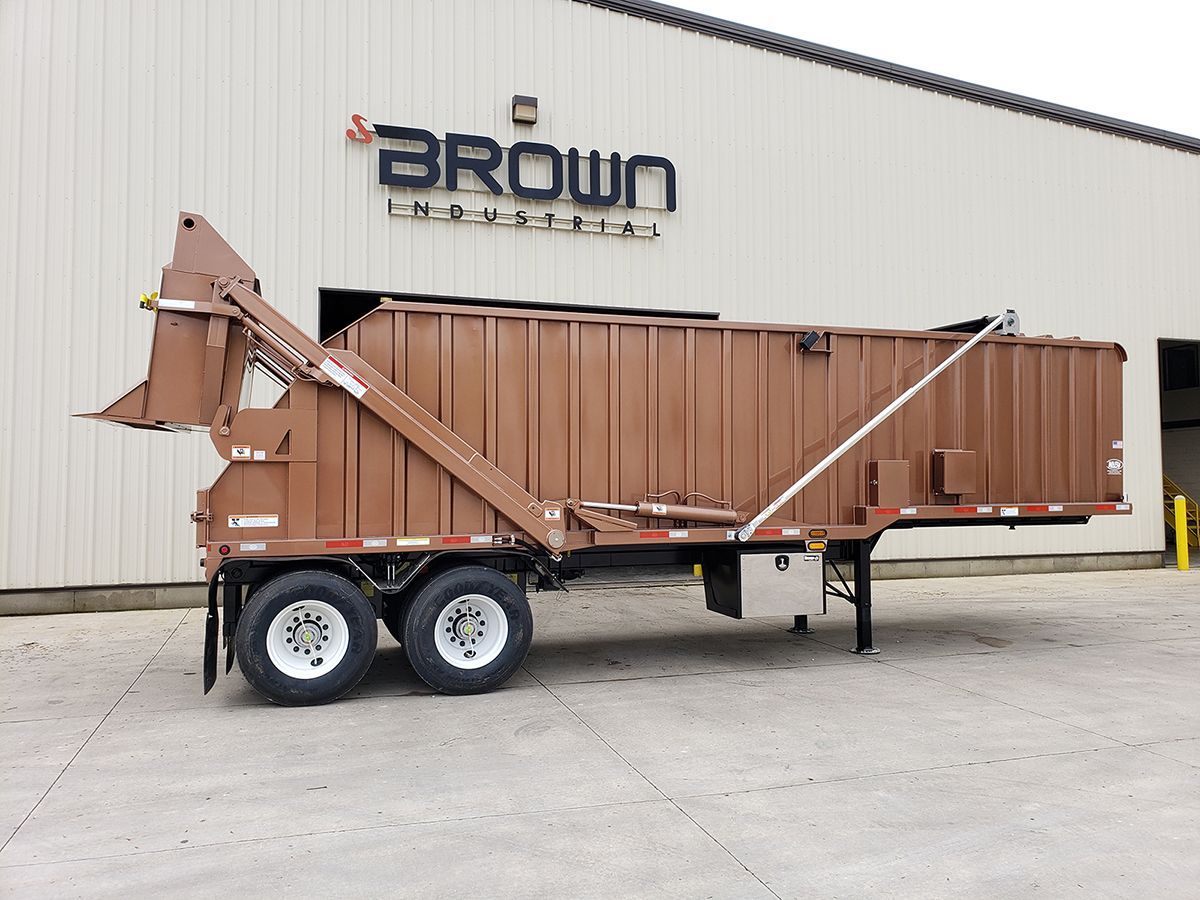

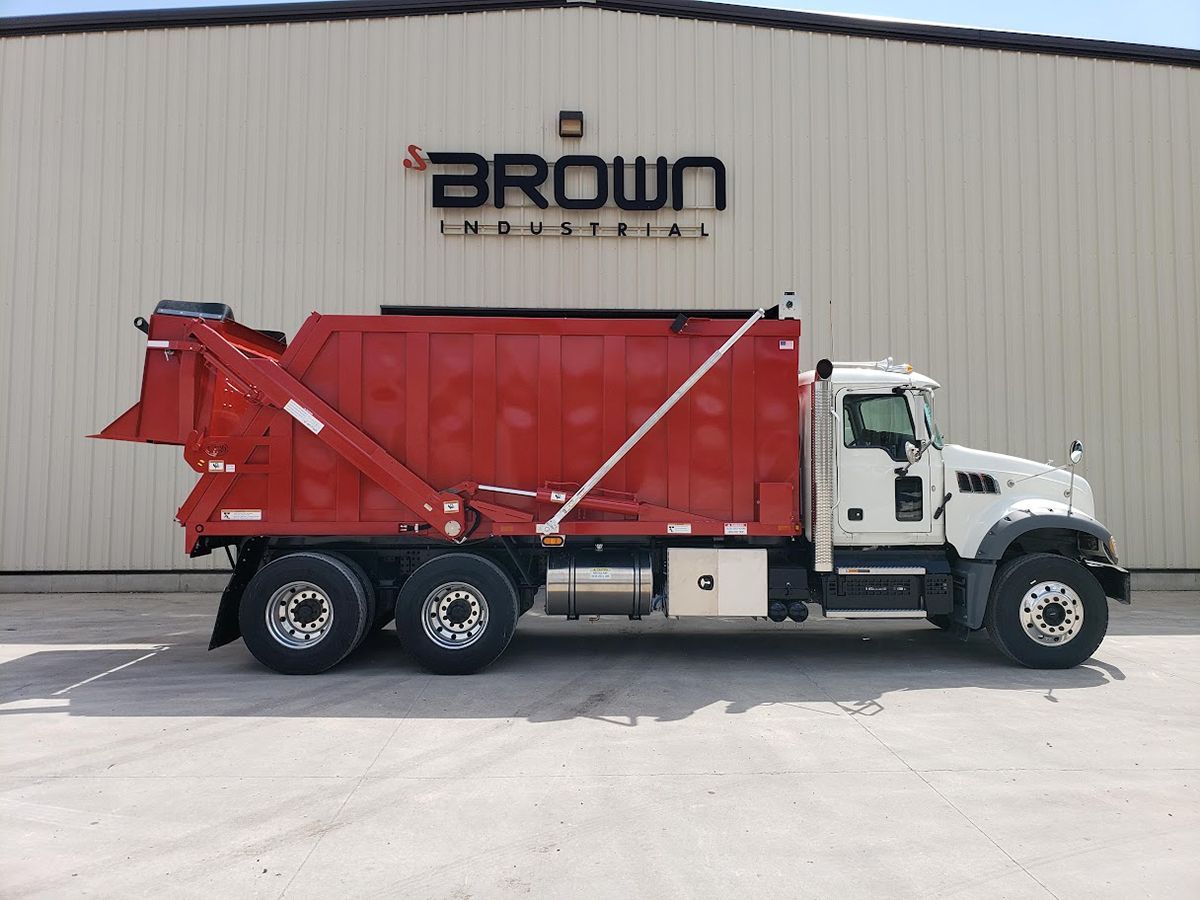

Steel Unit Standard Features:

• Strong, lightweight corrugated sides
• 45° floor corners, for structural rigidity and easy clean out
• WaBo® designed cylinder guides to allow more leverage and industry leading forward dumping position
• Seamless hydraulic tubing with flared ends
• Rugged stepped trailer frames to maintain a low center of gravity
• All critical components welded with pulse wire technology for a long, low maintenance life
• Full height sealed tailgate
• 3” replaceable bronze arm shaft bushings
• 2” greasable bronze bucket bushings
• Bolt-on taper lock and keyed arms
• Abrasive blast body primed and painted one color with urethane paint
• Black epoxy frame paint

Steel Available Options:

• Bucket designed for custom application
• Tarp systems
• Hide baskets
• WaBo® side mount or multiple barrel washer
• Radio control hydraulic valves
• Load divider gate
• Back up camera
• Tire inflation systems
• Vulcan weighing system
• Available in flat frame
